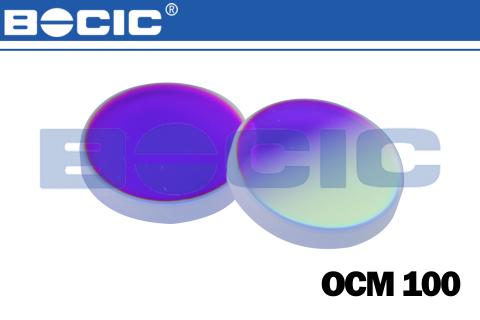

OCM100 series partial reflective coating lens
1. Material: K9 optical glass or fused silica
2. Size Tolerance: +0.0/-0.2mm
3. Clear Aperture: ＞90%
4. Thickness Tolerance: ±0.2mm
5. Surface Figure: ＜ λ/[email protected]
6. Parallelism: ＜1 arc min
7. Surface Quality: 60/40 scratch and dig
8. Coating: Dielectric HR coating on one surface, rear side AR coated
9. Damage Threshold: ＞1J/cm2, 20ns, 20Hz, @1064nm
10. T/R: 50/50±5%, T=(Ts+Tp)/2, R=(Rs+Rp)/2
- description
- parameters
|
Model |
Size（mm） |
T/R |
Wavelength(nm) |
AOI(Deg) |
|
OCM101 |
12.7×12.7×3.0 |
50:50±5% |
450 - 650 |
45 |
|
OCM102 |
Φ12.7×3.0 |
50:50±5% |
450 - 650 |
45 |
|
OCM103 |
25.4×25.4×3.0 |
50:50±5% |
450 - 650 |
45 |
|
OCM104 |
Φ25.4×3.0 |
50:50±5% |
450 - 650 |
45 |
|
OCM105 |
50.8×50.8×3.0 |
50:50±5% |
450 - 650 |
45 |
|
OCM106 |
Φ50.8×3.0 |
50:50±5% |
450 - 650 |
45 |
|
OCM107 |
12.7×12.7×3.0 |
50:50±5% |
650 - 900 |
45 |
|
OCM108 |
Φ12.7×3.0 |
50:50±5% |
650 - 900 |
45 |
|
OCM109 |
25.4×25.4×3.0 |
50:50±5% |
650 - 900 |
45 |
|
OCM110 |
Φ25.4×3.0 |
50:50±5% |
650 - 900 |
45 |
|
OCM111 |
50.8×50.8×3.0 |
50:50±5% |
650 - 900 |
45 |
|
OCM112 |
Φ50.8×3.0 |
50:50±5% |
650 - 900 |
45 |
|
OCM113 |
12.7×12.7×3.0 |
50:50±5% |
900 - 1200 |
45 |
|
OCM114 |
Φ12.7×3.0 |
50:50±5% |
900 - 1200 |
45 |
|
OCM115 |
25.4×25.4×3.0 |
50:50±5% |
900 - 1200 |
45 |
|
OCM116 |
Φ25.4×3.0 |
50:50±5% |
900 - 1200 |
45 |
|
OCM117 |
50.8×50.8×3.0 |
50:50±5% |
900 - 1200 |
45 |
|
OCM118 |
Φ50.8×3.0 |
50:50±5% |
900 - 1200 |
45 |
PS： Φ- Diameter，R1- Radius，Tc- Center thickness，Te- Edge thickness，f- Focal Length，fb- Back focal
