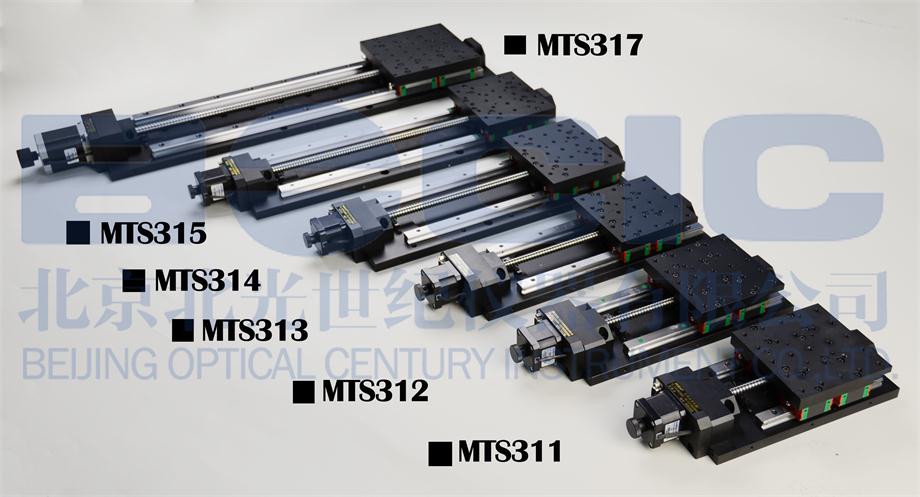

MTS310 series motorized precision translation stages
1.Actuated withhigh precisionball screw andlinear
guides
2.Highprecision,large bearing capacity
3.Additionaldust cover is available
4.The controller uses standard RS232 interface
5.Zero position photoelectric switch is
included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.
6.Can operate in vacuum environment
after necessary modification.
- description
- parameters
|
Model |
MTS311 |
MTS312 |
MTS313 |
MTS314 |
MTS315 |
MTS316 |
MTS317 |
|
Travel（mm） |
50 |
100 |
150 |
200 |
250 |
300 |
400 |
|
Table size (mm） |
120×120 |
120×120 |
120×120 |
150×120 |
150×120 |
150×120 |
165×160 |
|
Guides |
Linear guides |
||||||
|
Screw pitch（mm） |
4 |
5 |
|||||
|
Resolution（mm） |
0.00032 |
0.00039 |
|||||
|
Maximum speed (mm/s) |
20 |
40 |
50 |
||||
|
Resetting positioning accuracy (mm） |
＜0.003 |
||||||
|
Axial clearance (mm） |
＜0.005 |
||||||
|
Stepper motor（1.8°） |
42 stepper motor |
56 stepper motor |
|||||
|
Maximum static torque (Ncm) |
40 |
50 |
80 |
||||
|
Loading capacity(kg) |
20 |
30 |
50 |
||||
|
Weight（kg） |
3.4 |
3.8 |
4.1 |
5.5 |
5.8 |
6.3 |
11.5 |
|
Comment |
The product can be used in vacuum environment and increase dust cover，but you need to have it made to order. |
||||||
