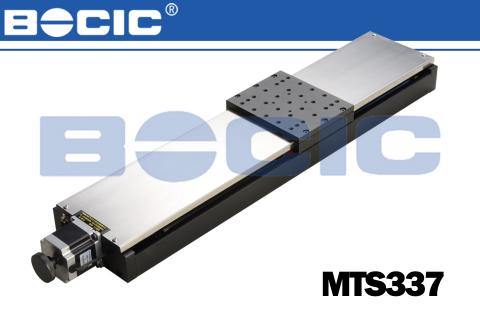

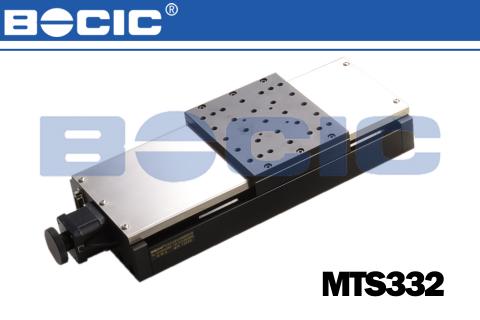

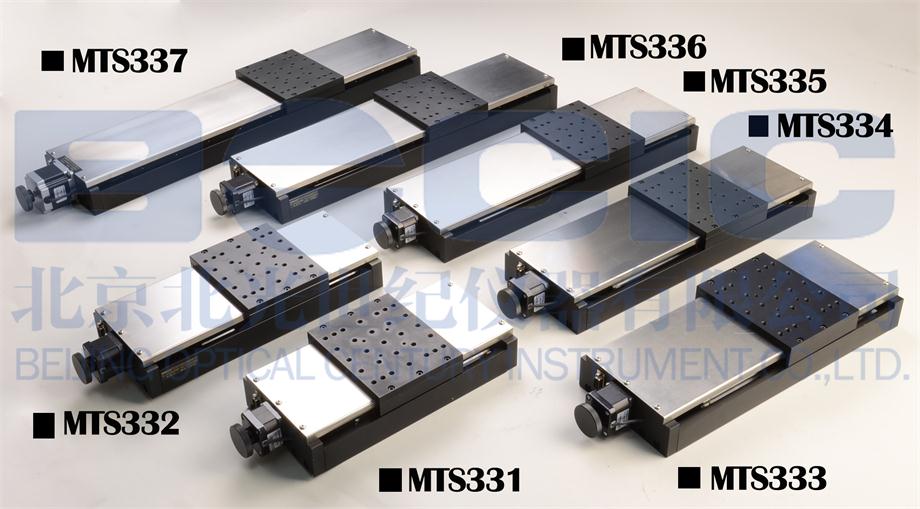

MTS330/340 series motorized translation stages
1.Actuated withball screw andlinear guides
2.Highprecision ,large bearing capacity
3.Ushape base plate, high strength
4.The dust cover is made of stainless steel
5.The controller uses standard RS232 interface
6.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.
7.Additional power-off protector is available for vertical operation.
- description
- parameters
|

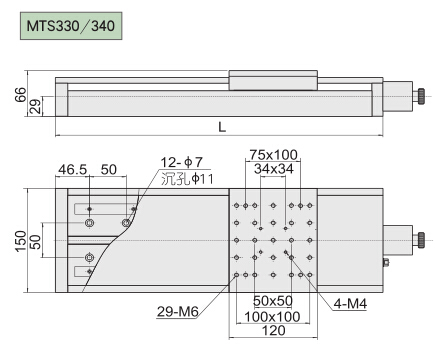

Model |
MTS331 |
MTS332 |
MTS333 |
MTS334 |
MTS335 |
MTS336 |
MTS337 |
|
Travel（mm） |
50 |
100 |
150 |
200 |
250 |
300 |
400 |
|
L(mm) |
296 |
346 |
396 |
446 |
496 |
546 |
646 |
|
Guides |
Linear guides |
||||||
|
Screw pitch（mm） |
4 |
5 |
|||||
|
Resolution（mm） |
0.00032 |
0.00039 |
|||||
|
Maximum speed (mm/s) |
20 |
40 |
50 |
||||
|
Resetting positioning accuracy (mm） |
＜0.005 |
||||||
|
Axial clearance (mm） |
＜0.02 |
||||||
|
Stepper motor（1.8°） |
42 stepper motor |
56stepper motor |
|||||
|
Maximum static torque (Ncm) |
40 |
50 |
80 |
||||
|
Loading capacity(kg) |
20 |
30 |
50 |
||||
|
Weight（kg） |
5.3 |
5.8 |
6.3 |
6.8 |
7.4 |
8.0 |
11.7 |
|
Comment |
The product can be used in vacuum environment，but you need to have it made to order. |
||||||
|
Model |
MTS341 |
MTS342 |
MTS343 |
MTS344 |
MTS345 |
MTS346 |
MTS347 |
|
Travel（mm） |
50 |
100 |
150 |
200 |
250 |
300 |
400 |
|
L(mm) |
296 |
346 |
396 |
446 |
496 |
546 |
646 |
|
Guides |
Linear guides |
||||||
|
4 |
5 |
||||||
|
Resolution（mm） |
0.00032 |
0.00039 |
|||||
|
Maximum speed (mm/s) |
20 |
40 |
50 |
||||
|
Resetting positioning accuracy (mm） |
＜0.003 |
||||||
|
Axial clearance (mm） |
＜0.005 |
||||||
|
Stepper motor（1.8°） |
42 stepper motor |
56 stepper motor |
|||||
|
Maximum static torque (Ncm) |
40 |
50 |
80 |
||||
|
Loading capacity(kg) |
20 |
30 |
50 |
||||
|
Weight（kg） |
5.3 |
5.8 |
6.3 |
6.8 |
7.4 |
8.0 |
11.7 |
|
Comment |
The product can be used in vacuum environment，but you need to have it made to order. |
||||||
