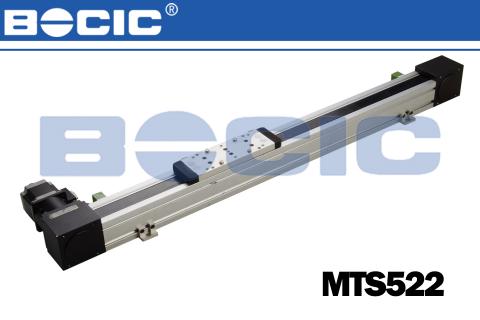

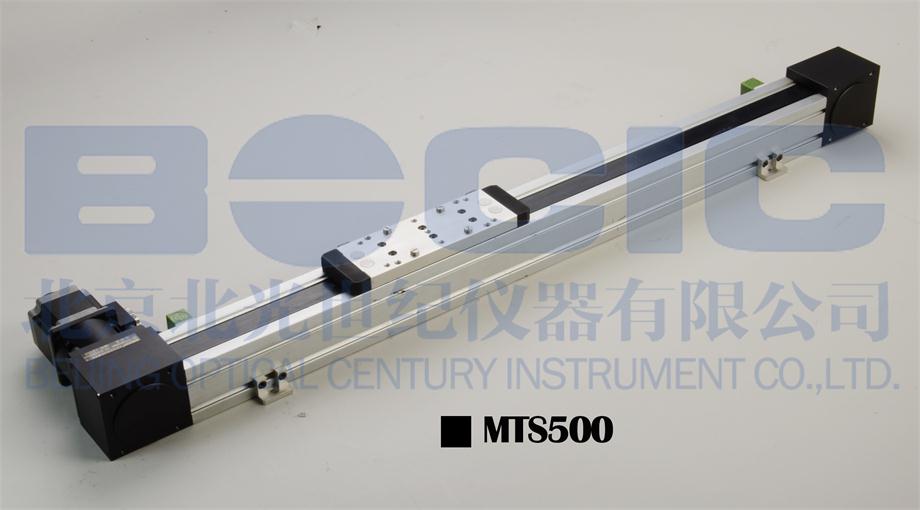

MTS500/520/540 series motorized translation stages
1.Actuated withbeltandlinear guides
2.High speed
3.Made ofaluminum alloy, light weight.
4.The dust cover is made of stainless steel material with high heat and laser resistance.
5.The controller uses standard RS232 interface
6.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.
7.Servo motors can be used instead of standard stepper motors.
8.The length of the stage can be customized.
9. Locationsof the limit switches and mounting tabs can be adjusted.
- description
- parameters
|

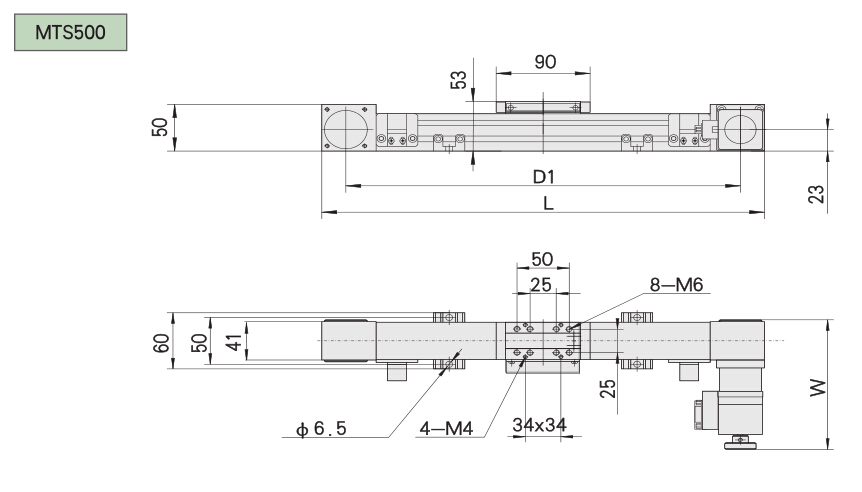

Model |
MTS502 |
MTS505 |
MTS508 |
|
Travel（mm） |
200 |
500 |
800 |
|
D1（mm） |
378 |
678 |
978 |
|
L（mm） |
424 |
724 |
1024 |
|
W（mm） |
133 |
139 |
147 |
|
Table size (mm） |
40×90 |
||
|
Guides |
Linear guides |
||
|
Resetting positioning accuracy (mm） |
±0.05 |
||
|
Resolution（mm） |
0.012 |
||
|
Maximum speed (mm/s) |
450 |
||
|
Maximum static torque (Ncm) |
20 |
40 |
50 |
|
Stepper motor（1.8°） |
42stepper motor |
||
|
Loading capacity(kg) |
8（level） |
7（level） |
5（level） |
|
Weight（kg） |
4 |
7.5 |
11.5 |
|

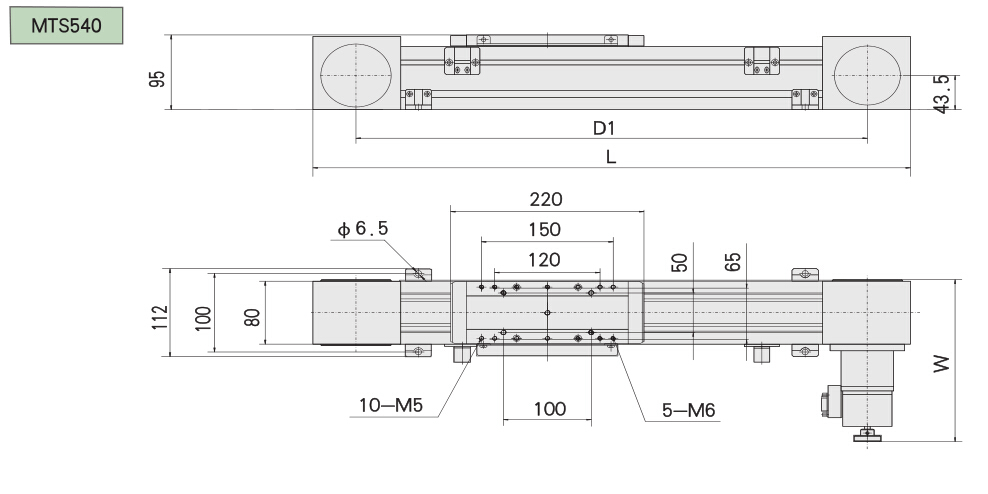

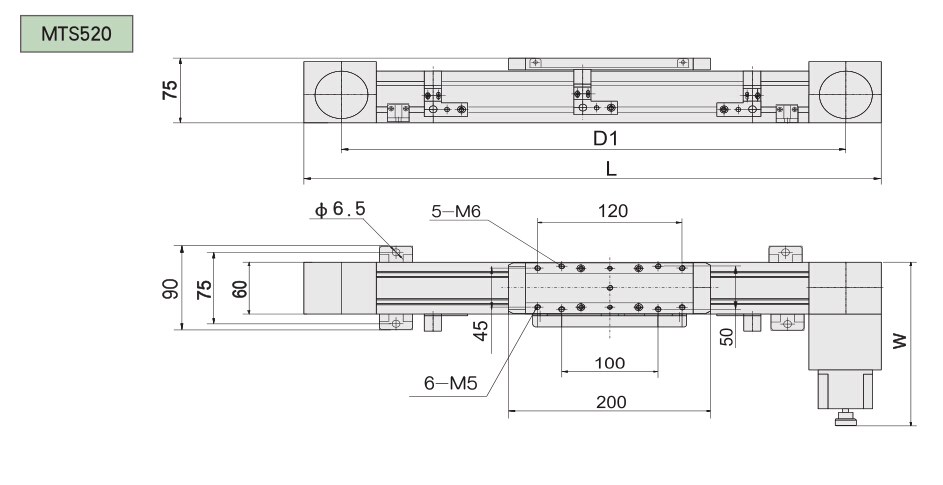

Model |
MTS522 |
MTS525 |
MTS528 |
MTS542 |
MTS545 |
MTS548 |
MTS549 |
|
Travel（mm） |
200 |
500 |
1000 |
200 |
500 |
1000 |
2000 |
|
D1（mm） |
526 |
826 |
1326 |
582 |
882 |
1382 |
2382 |
|
L（mm） |
600 |
900 |
1400 |
680 |
980 |
1480 |
2480 |
|
W（mm） |
190 |
200 |
220 |
206 |
215 |
236 |
236 |
|
Table size (mm） |
60×200 |
80×220 |
|||||
|
Resetting positioning accuracy (mm） |
0.012 |
||||||
|
Guides |
Linear guides |
||||||
|
Resolution（mm） |
±0.05 |
||||||
|
Maximum speed (mm/s) |
1000 |
||||||
|
Maximum static torque (Ncm) |
60 |
100 |
170 |
60 |
100 |
170 |
|
|
Stepper motor（1.8°） |
56 stepper motor |
||||||
|
Loading capacity(kg) |
15（level） |
10（level） |
50（level） |
45（level） |
35（level） |
||
|
Weight（kg） |
4.5 |
7 |
11 |
6.5 |
9.8 |
14.8 |
18.5 |
